Item specifics
  • Item Type: Car DVR
  • Display Size: 5"
  • Interface: AV-Out,WI-FI,Micro SD/TF
  • Chipset Manufacturer: Allwinner
  • OSD Language: Chinese (Simplified),English
  • Special Features: Others,Microphone,Anti Fog,Wifi Function,SD/MMC Card,Real Time Surveillance,Anti Vibration,Time&Date Display,Cycle Recording,G-sensor,Cyclic Recording,Night Vision,Waterproof
  • Touch Screen: Yes
  • GPS logger: None
  • Video Code: H.264
  • Number Of Lenses: 2
  • Battery: None
  • Memory Card Required Reding Speed: Class 10
  • Original Package: Yes
  • Brand Name: Eunavi
  • Imaging Sensor: 1/3 Color Cmos
  • Camera Resolution: 1920x1080

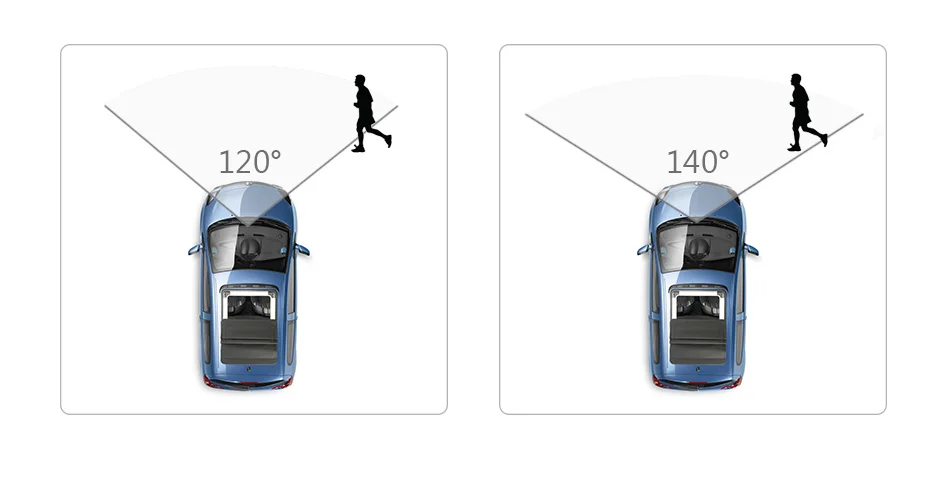

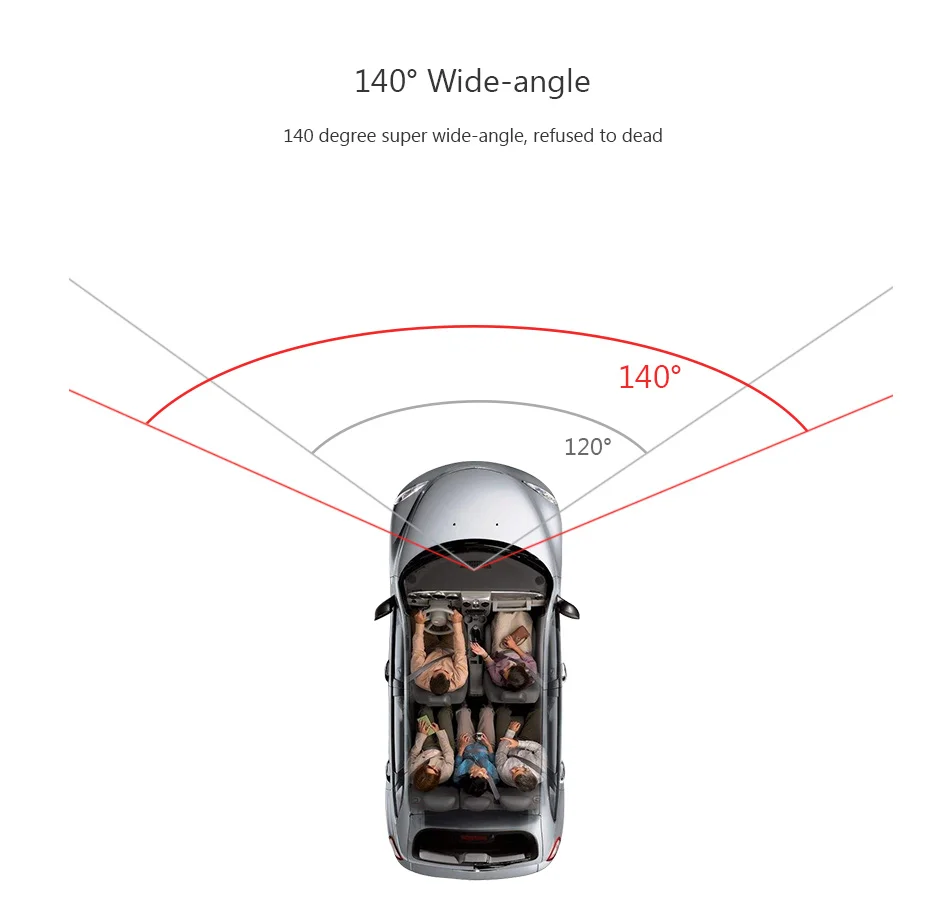

  • View angle: 140°
  • Max External Memory: 32G
  • Frames Per Second: 30
  • Video Format: MOV
  • Assembly Mode: Rearview Mirror
  • Pixels: 800Mega
  • Screen Ratio: 4:3
  • Battery Life: 30s
Product Description

warm tips :

Don\'t wast your money in other lower price camera . Our product is better and much worth it. Enjoy recording

  Android system :

 1. CPU: Allwinner A33,  Quad-core 1.5GHz, 512MB DDR3 , device works   smoothly.
 2. Android 4.4.2, Simple UI interface, user operation is more simple, more focus on user experience!

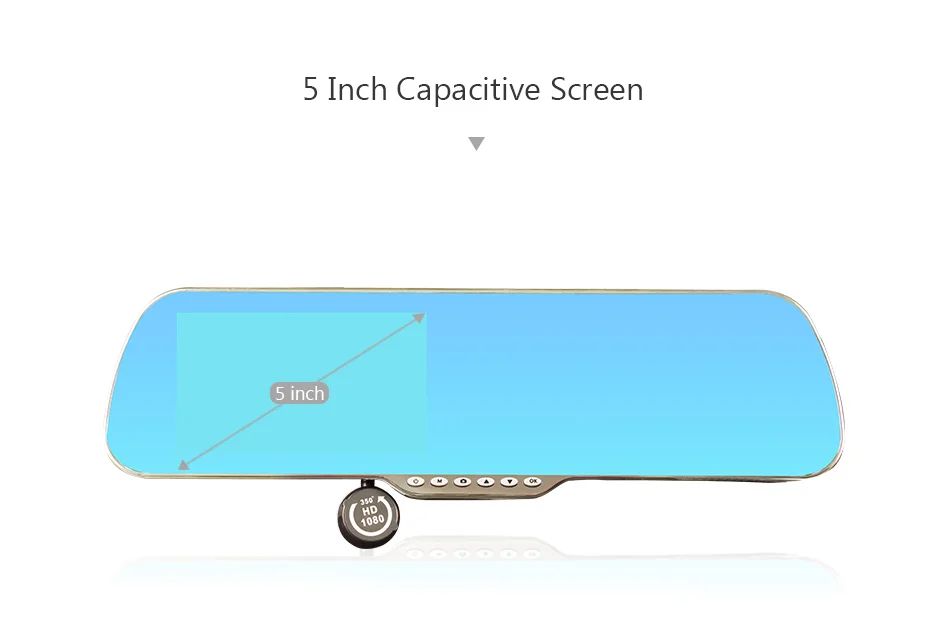

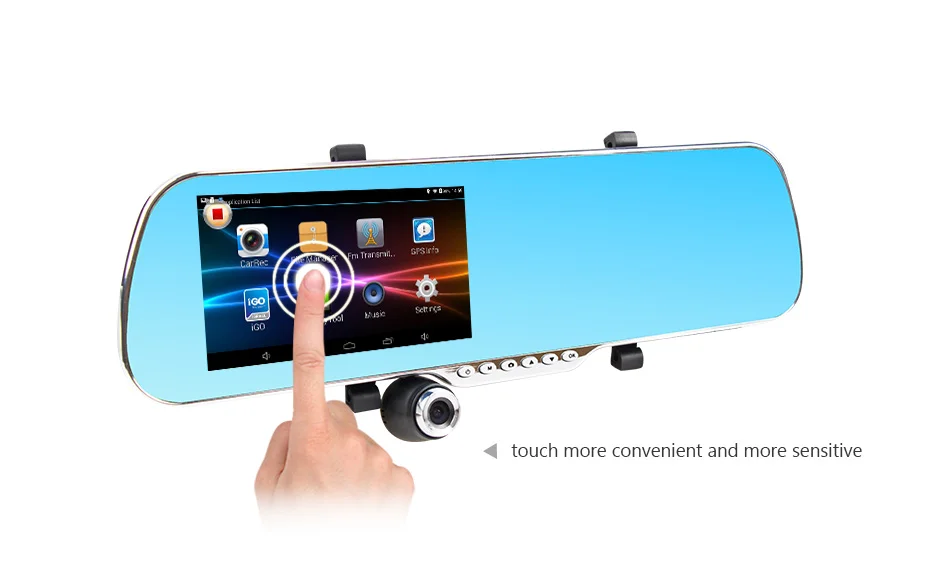

 3. 5 inch 800*480  Capacitive screen


    DVR Recorder Camera :


 1. Full HD DVR Camera Video mirror

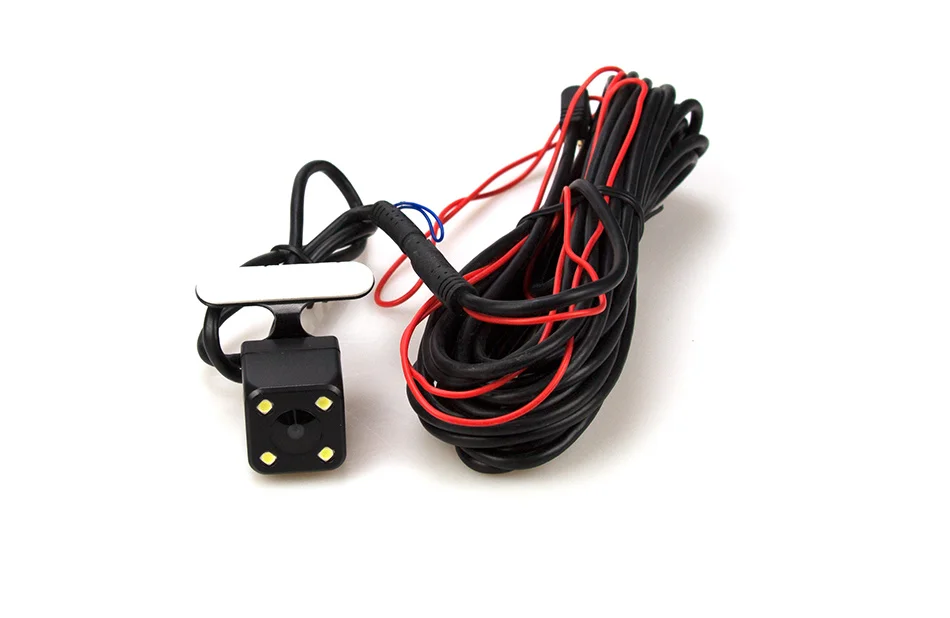

2.include Rear view camera
 3. G-sensor, Automatic loop recording

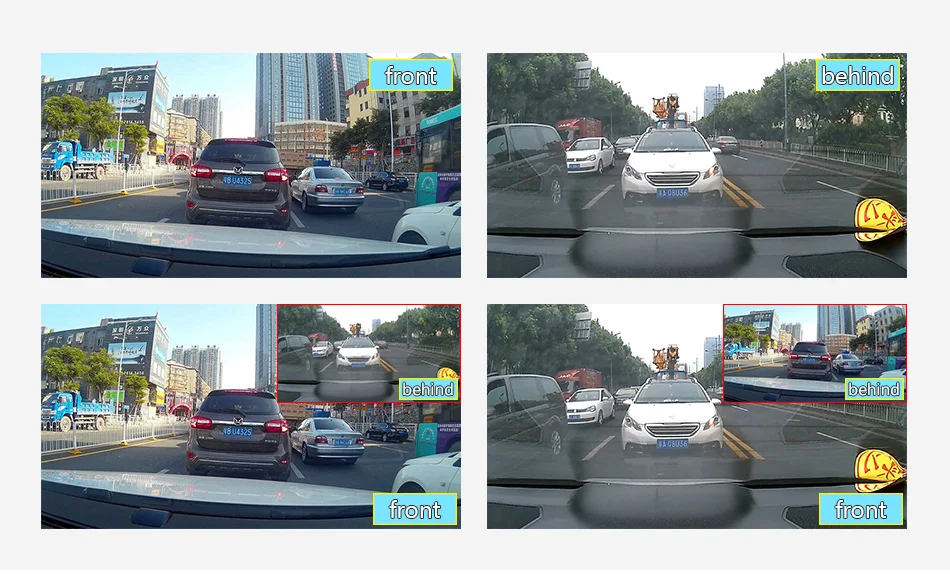

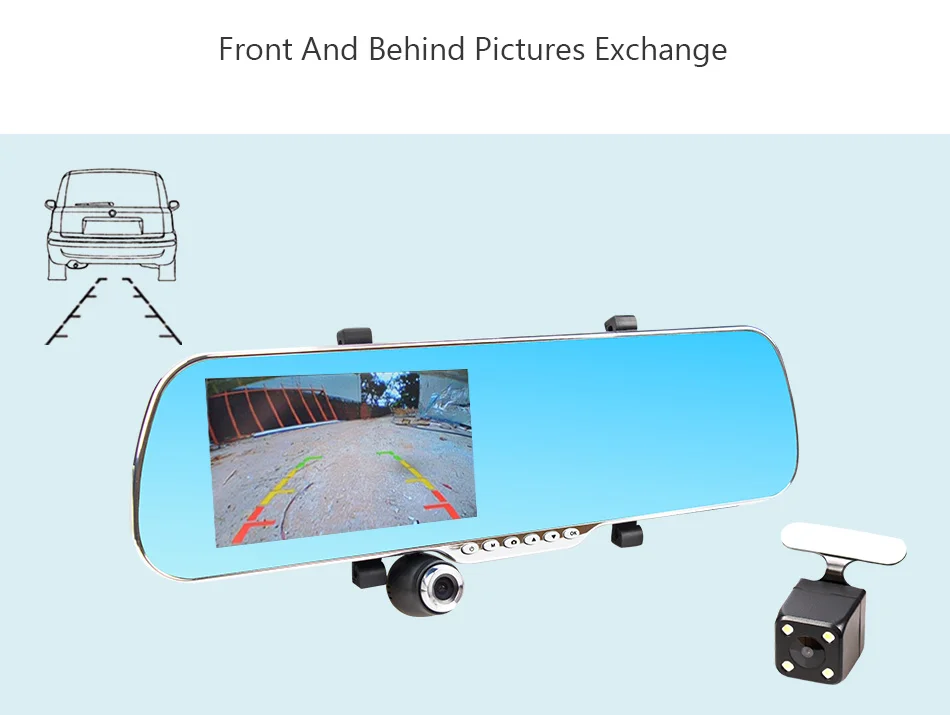

 4. Support Rear View: Reversing automatically switch the screen

01_0101_0201_0301_0401_0501_0601_0701_0801_1001_1101_1201_1301_1501_1601_1701_1801_1901_2001_2101_2201_2301_2401_2501_2601_2701_2801_29

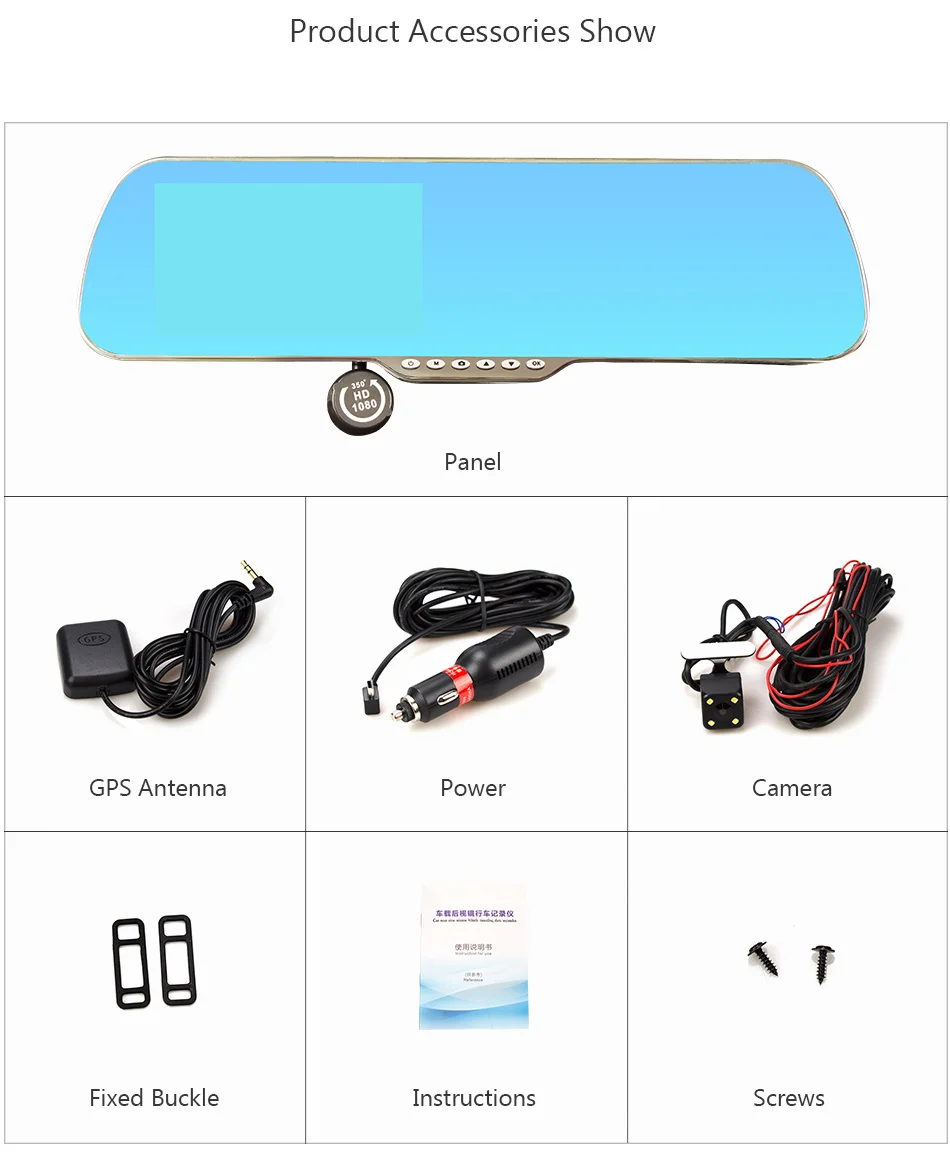

  • 1xPower Cable

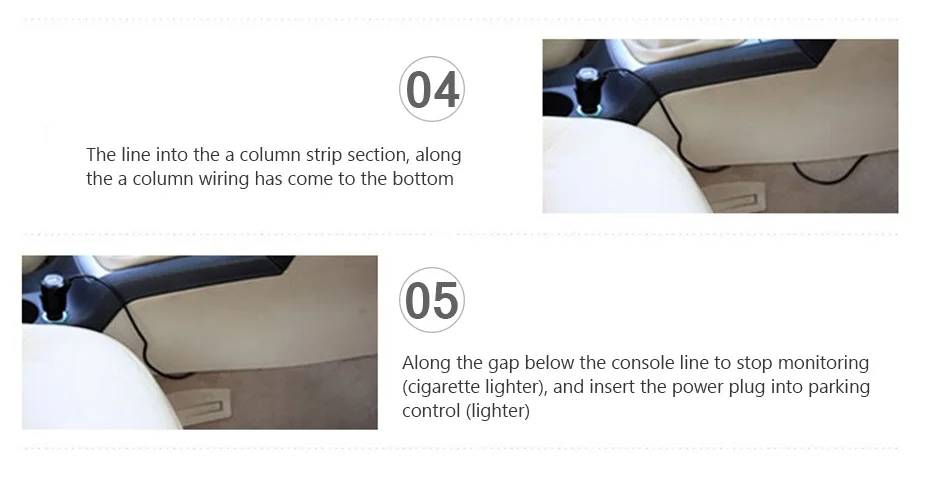

  • install:

    • Follow the manual of your car or search the information from internet to find your car fuse box ,open the box with the plastic pry tool (if you have to use it)
    • Use the electro probe ,find the ACC power fuse and Constant power fuse ,we recommend you use reading lamps , headlights, tail lamps , turn signals, power windows fuse to supply for the Constant power (if they are constant power fuse )
    • ACC power: When you plug your car key then turn it to ACC ,the power will work .if you urn your car Key to Lock or unplug your can ,the power will be off .Connect the red wire (ACC) with the ACC power fuse.
    • Constant power : plug or unplug your car key ,the power is uninterrupted .Connect the yellow wire ( B+ ) with the Constant Power fuse
    • For some cars ,you have to cut the wires , refit them then connect them with the car fuses .Then plug the fuse to where it is .The GND wire (black ) to connect it with steel plate or screw

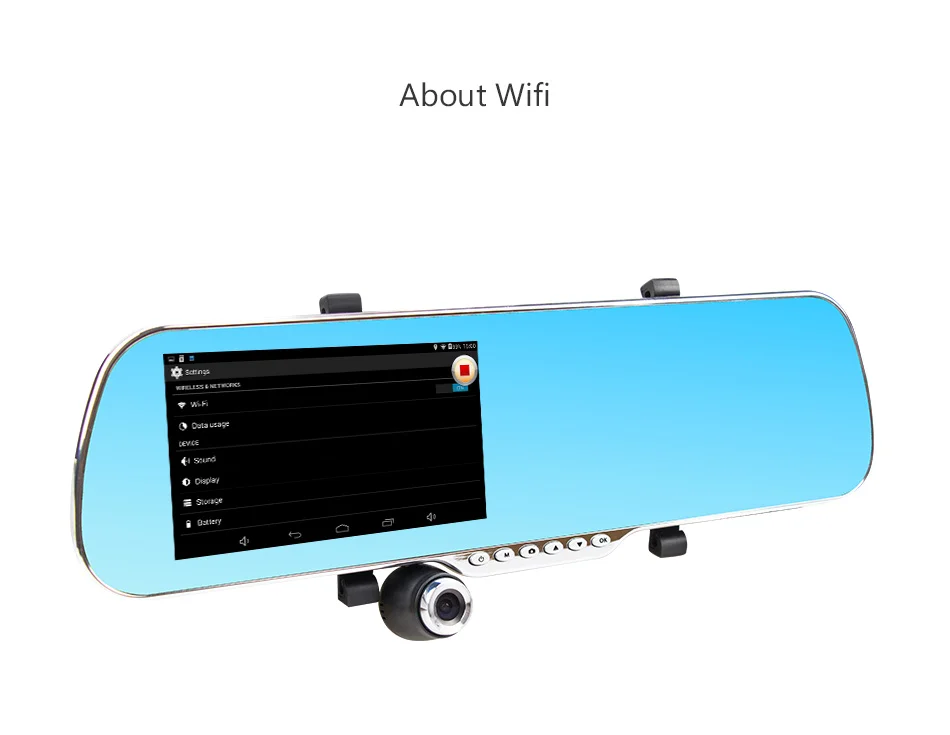

    • Connect the car DVR with the wires ,then turn your car key to ACC ,test the car DVR Can work or not .Connect your smart phone with the car DVR via WiFi ,open the app as FinalCam to manipulate the car DVR and find the best installation position
    • Stick the car DVR on windshield by 3M glue ,then hidden the wires ,finish the installation , feel at ease to use .

      Note :
    •  that the device does not have a battery, Pelase connect the power supply
    • If the time of car DVR is wrong ,connect the car DVR with your smart phone via WiFi
    • open the app ,the time will update auto ,if not ,you can set the by yourself
    • The videos in app is not as good as the video on SD card ,if you want to watch the 1080P video ,you have to unplug the SD card ,then plug it to your smart phone or use a SD card reader to watch the videos on your computer
    • The car DVR need to plus a TF card (support Max 32G) to record.

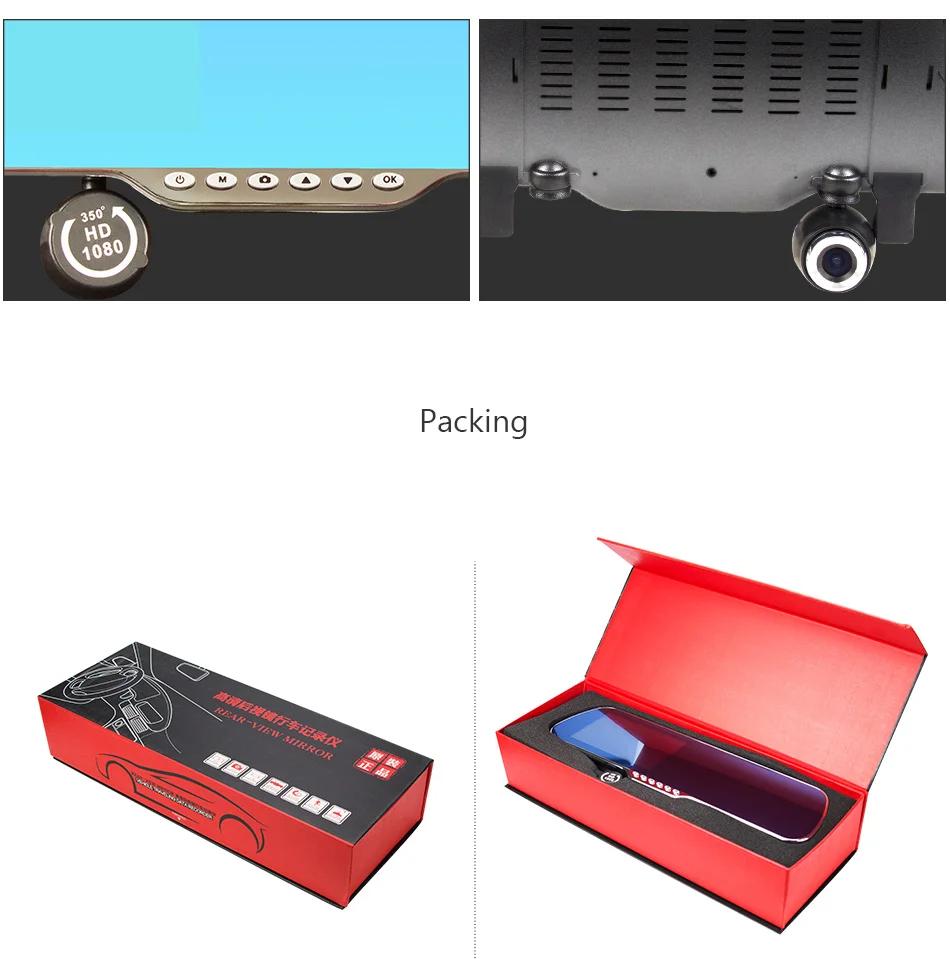

Packaging Details
  • Unit Type: Set
  • Package Weight: 1.2kg (2.65lb.)
  • Package Size: 30cm x 24cm x 12cm (11.81in x 9.45in x 4.72in)
